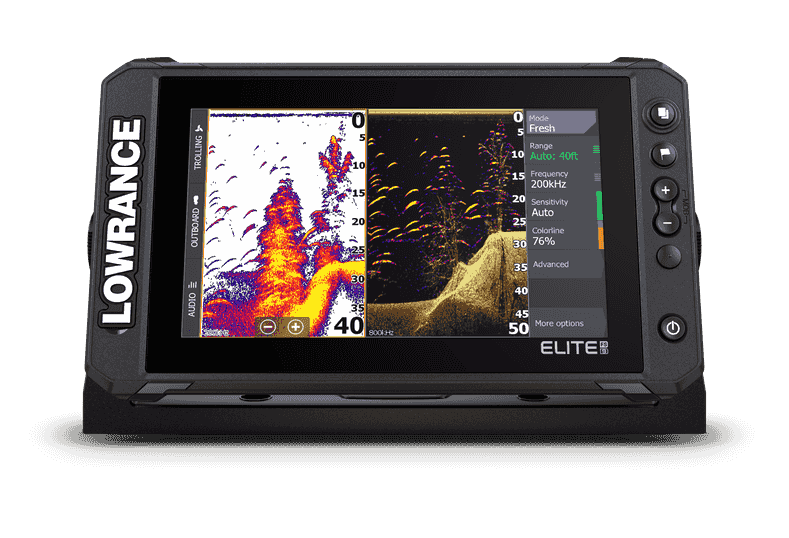

ELITE FS 9 with Active Imaging 3-in-1 Transducer (ROW)

The Lowrance ELITE FS 9 is an advanced fishfinder and chartplotter featuring a bright 9-inch touchscreen and Active Imaging™ 3-in-1 sonar. With CHIRP, SideScan, DownScan, and FishReveal™ technology, you get an ultra-detailed view of the bottom, structures, and fish. The ELITE FS 9 is suitable for both freshwater and saltwater and offers extensive connectivity for a complete fishing experience.

Features of ELITE FS 9 with Active Imaging 3-in-1 Transducer (ROW)

• 9-inch multitouch color display
• Includes Active Imaging™ 3-in-1 transducer
• CHIRP sonar
• SideScan Imaging™
• DownScan Imaging™
• FishReveal™ technology for improved fish identification
• Maximum output power of 1 kW RMS
• CHIRP sonar up to 900 meters depth (Low CHIRP)
• SideScan and DownScan range up to 91 meters
• Supports Low, Medium, and High CHIRP frequencies
• 50/83/200 kHz Broadband sonar
• 455/800 kHz SideScan and DownScan Imaging
• Brightness over 1200 nits
• Resolution: 800 × 480 pixels
• 10Hz GPS receiver
• Supports WAAS, EGNOS, GLONASS, MSAS, and BeiDou
• Bluetooth 4.0
• Internal Wi-Fi
• NMEA 2000 connection
• Ethernet connection
• MicroSD/SDXC card slot
• Depth, shallow water, and temperature alarms
• IPX6 and IPX7 waterproof
• Power supply: 10 - 17V DC
• Maximum power consumption: 28 Watts
• Weight display: 1.2 kg
• Dimensions: 30.92 × 18.07 × 11.84 cm

Product benefits

• Crystal-clear sonar images for easy identification of fish and structures
• FishReveal™ combines CHIRP and DownScan for clear distinction between fish and bottom structure
• Extensive connectivity for modern fishing boats and electronics

Package contents

• Lowrance ELITE FS 9 display
• Active Imaging™ 3-in-1 transducer with 7.6 meter cable
• Sunshade
• Mounting bracket with fastening knobs
• Power cable
• Connector clip kit
