Voerboot - Icon Edition - Urban Camo - Sonar / Fishfinder

Integrated Sonar BaitBoat Urban Camo - BT7

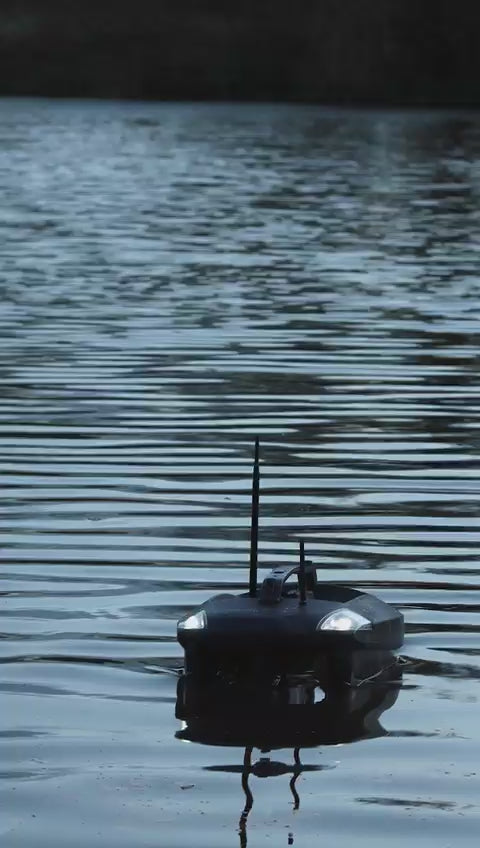

The BEETACKLE Integrated Sonar BaitBoat Urban Camo BT7 is a compact bait boat with an integrated triple-beam fishfinder, GPS module, and extensive control via the BEETACKLE Fish Finder App. While sailing, you get immediate insight into water depth, bottom structure, bottom hardness, weed growth, and possible fish activity. The saved sonar data can be reviewed later, so you can calmly analyze and mark interesting spots even after the session.

The BT7 combines a load capacity of over 4 kg with live sonar, three-dimensional depth maps, and a compact size. With the optionally activatable Autopilot, routes, bait spots, and complete Action Groups can be programmed. This allows the boat to automatically sail to a saved spot, drop the bait, and then return to the set starting point.

Features of the Integrated Sonar BaitBoat Urban Camo - BT7

• Compact bait boat with integrated fishfinder and GPS module
• Finished in Urban Camo
• Load capacity over 4 kg
• Large central bait compartment for bait and rigs
• Integrated triple-beam sonar
• Suitable for water depths from approximately 30 cm
• Maximum specified scan depth of approximately 30 meters
• Up to 9 sonar scans per second
• Displays water depth, fish activity, and bottom profile
• Shows differences between hard and soft bottom
• Suitable for locating weed, slopes, channels, and other structures
• Display of secondary echoes to identify harder bottoms
• Built-in water temperature sensor
• Live sonar display via the BEETACKLE Fish Finder App
• Live Mapping for creating depth maps
• Supports detailed 3D bathymetric water maps
• Sonar data can be recorded, saved, and replayed
• Rewind and Track Back function to revisit interesting spots
• Mark spots directly from the historical sonar image
• Saved spots and depth data available via the BEETACKLE Cloud
• Support for offline maps and satellite view
• Sonar sensitivity adjustable to personal preference
• Choice of various sonar views and screen layouts
• App available for Android and iOS devices
• Supports operation via smartphone and compatible tablet
• Built-in GPS, GLONASS, Galileo, BeiDou, and QZSS support
• One-hand remote control for easy operation with one hand
• Operating range of approximately 200 to 300 meters under favorable conditions
• Stable sonar connection up to over 200 meters under ideal conditions
• Sonar range can be extended with the optional BT4 Wi-Fi Extender
• Integrated, protected propeller system
• Design helps limit the intrusion of weed and floating debris
• Constant cruising speed can be activated via the remote control
• Speed adjustable via the app with ten different levels
• Stealth Mode temporarily disables lights and sound signals
• Firmware can be updated via the app
• Includes two battery packs for longer run time
• About 2 to 2.5 hours run time, depending on load and conditions
• Specified total range of about 7 to 9 kilometers per battery charge
• About 10 hours remote control usage time

Triple-beam sonar and fishfinder

• Three sonar beams for different water depths and applications
• Narrow 680 kHz beam with a viewing angle of 7 degrees
• Target separation up to about 1 cm with the narrow sonar beam
• Medium-wide beam for a combination of detail and bottom coverage
• Wide 100 kHz beam with a viewing angle of 47 degrees
• Target separation up to about 2.4 cm with the medium-wide and wide beam
• Detects bottom structures and fish from about 0.3 meters depth
• Suitable for shallow edges, weed beds and shallow bait zones
• Fish Identification to recognise possible fish at different depths
• Colour gradient for assessing bottom hardness
• Adjustable sensitivity for more detail or a calmer sonar image
• Built-in temperature sensor with an accuracy of about ±1°C

Live Mapping and 3D depth charts

• Records depth data while the bait boat moves over the water
• Creates contour maps of the surveyed water
• Supports three-dimensional bathymetric bottom maps
• Helps find slopes, flats, channels, holes and hard spots
• Sonar recordings can be reviewed during or after the session
• Mark interesting locations directly from a sonar recording
• Saved spots can be added to the personal BEETACKLE Cloud
• With Autopilot activated, a defined area can be scanned automatically
• The app can calculate an efficient route through the selected scan area
• Suitable for pre-analyzing previously saved sonar data

GPS, Autopilot and Action Groups

The BT7 comes standard with GPS hardware. For automatic navigation to spots and full use of navigation and safety features, a separate paid Autopilot activation via the BEETACKLE Fish Finder App is required.

• Point-to-point navigation to saved bait spots
• Automatically returns to the set HOME point
• Store multiple favourite spots
• Select saved spots via the app or remote control
• Spot-Lock keeps the boat within about 1 meter of the chosen position
• Automatic speed reduction when approaching the bait spot
• Automatic return at low battery voltage
• Automatic return if control signal is lost
• Automatic following of calculated routes during mapping
• Action Groups with up to 20 programmable commands
• Combines functions like driving, adjusting speed, bait release, and returning
• Saved Action Groups can be edited or rearranged later

BEETACKLE Fish Finder App

• Combines bait boat and fishfinder control in one app
• Available for modern Android and iOS devices
• Sonar and map view can be used side by side
• Choice of light, dark, and BEETACKLE display modes
• Control of lighting and bait compartment via the app
• Immediate stop and return of the bait boat via the control screen
• Live markings and saved spots visible on the map
• Sonar recordings can be saved, paused, and replayed
• Autopilot can be activated and controlled directly from the app
• Maps and Autopilot can be used offline when the necessary data is preloaded
• An internet connection is required for cloud storage and firmware updates
• According to BEETACKLE, future app updates will be provided free of charge

Product advantages

• Combines a bait boat, GPS, and advanced fishfinder in one system
• Suitable for very shallow water as well as water up to approximately 30 meters deep
• Allows extensive spot analysis during and after the session
• High load capacity relative to compact size and weight
• Expandable with automatic navigation and programmable cruising routines

Technical specifications

• Brand: BEETACKLE
• Model: BT7
• Type: Integrated sonar bait boat
• Color: Urban Camo
• Dimensions: approximately 55 × 37 × 23 cm
• Weight including battery: approximately 5 kg
• Load capacity: over 4 kg
• Sonar type: Triple-beam fishfinder
• Sonar range: approximately 0.3 to 30 meters
• Scan speed: up to 9 scans per second
• Narrow sonar beam: 680 kHz / 7 degrees
• Wide sonar beam: 100 kHz / 47 degrees
• Target separation narrow beam: approximately 1 cm
• Target separation medium and wide beam: approximately 2.4 cm
• Temperature measurement: integrated, approximately ±1°C accuracy
• Sonar connection: Wi-Fi
• Standard sonar range: over 200 meters under ideal conditions
• Control range: approximately 200 to 300 meters, depending on the environment
• Running time: approximately 2 to 2.5 hours
• Specified cruising distance: approximately 7 to 9 km
• Remote control battery life: approximately 10 hours
• Supported positioning systems: GPS, GLONASS, Galileo, BeiDou, and QZSS
• Compatible app: BEETACKLE Fish Finder App
• Warranty: 2 years according to the manufacturer

Package contents

• 1 × BEETACKLE Integrated Sonar BaitBoat Urban Camo BT7
• 1 × BEETACKLE remote control
• 2 × 8-cell battery pack
• 1 × Parallel connection cable for the battery packs
• 1 × USB charger for the 8-cell battery pack
• 1 × Home charger with EU and UK plug
• 1 × USB-C cable
• 1 × Hard protective case

Important to know

• The Autopilot is not activated by default and requires a separate paid purchase via the BEETACKLE Fish Finder App.
• Spot-Lock, automatic return, automatic scan routes, and certain other navigation features require an active Autopilot license.
• A smartphone or tablet and the optional BT4 Wi-Fi Extender are not included.
• The actual sonar and control range depend on obstacles, weather conditions, and wireless interference.
• For a reliable GPS connection, the bait boat must be used outdoors with a clear view of the sky.
• The sonar automatically activates when placed in the water and stops transmitting when the bait boat is taken out of the water.
